Square Nuts
Products Of Nut
Stainless Steel 321 Metric Square Nuts, Stainless Steel 316 M12 Size Square Nuts, Stainless Steel 347 Ptfe Coated Square Nuts, Stainless Steel 310 Aircraft Square Nuts, super Duplex 32760 Metric Square Nuts, Stainless Steel 904L Zinc Plated Square Nuts, Stainless Steel 304 Square Nuts, super Duplex 32750 Hot Dip Galvanized Square Nuts, Duplex UNS S31803 Aircraft Square Nuts, SMO 254 Square Nuts, Stainless Steel 317 Hot Dip Galvanized Square Nuts, Hastelloy C276 Ptfe Coated Square Nuts, Duplex UNS S32205 M12 Size Square Nuts.

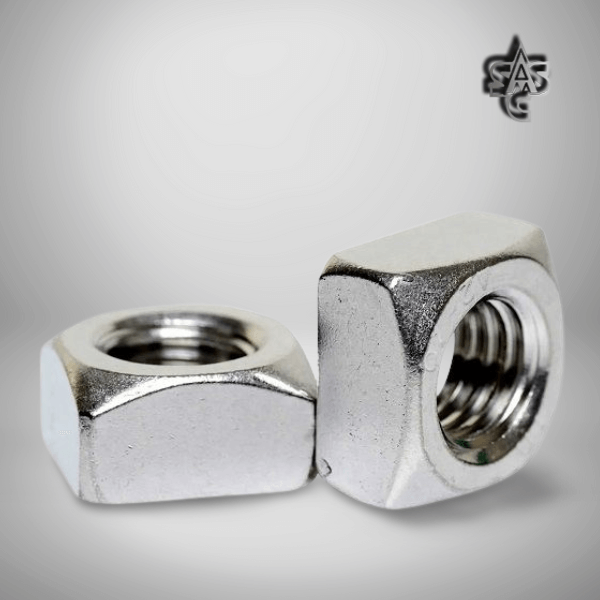

Nuts whose tops are square are called “square nuts.” A stronger grip may be achieved while tightening the square head. Shree Ashapura Steel is a market leader in the production and distribution of Square Nuts of varying specifications. Although square Nuts are not widely used, they are appreciated for their durability and visual appeal. The diameter of the Square Nuts may be anything from half an inch to two inches.
Previous
Next
About Square Nuts
Nuts come in a variety of lengths to suit a wide range of uses. The Nuts have many different mechanical, structural, and building uses. Square nuts come in a variety of styles, each made with a unique combination of metal grades. Various Nuts thread types are available for use in various circumstances. The aesthetic and revitalization sectors may benefit from this. Suspension bridges and other high-strength building projects may make use of Stainless Steel Square Nuts because of their durability. We also make square head screws in addition to being the industry standard for nut production. The screws are helpful because they can be tightened from the outside without needing a nut on the inside. For square Nuts price and more details, please get in touch.
Specification Of Square Nuts
| Size | M3 - M48 and also available in all customized sizes. |
| Length | 6mm-500mm and also available in all customized sizes. |
| Standard | DIN934 DIN936 DIN439 DIN555 A194 2H ASTM A563 |
| Material | Stainless Steel, Low carbon steel, Alloy carbon steel, High Tensile, Nickel Alloy, Alloy Steel, Mild Steel, Copper, Brass, Aluminium |
| Thread Requirements | Metric, Metric Fine, BSW, UNF, UNC, BA, BSF and BSCY (cycle) threads or as required |
| Manufacturing Process | Wire Drawing, Cold Heading, Insert tapping, Heat Treatment, Surface Plating, Inspection, Packing |
| Tollerence | OEM, ODM, ±0.03MM tolerance |
| Application | Wind tower, Nuclear power, Railway, Automotive industry, Construction, Electronic industry |
| Surface Finish | Blackening, Cadmium zinc plated, Galvanized, Hot dip Galvanized, Nickel Plated, Buffing, etc. |
| MOQ | 10 pieces |
| Delivery time | Regular product is about 7-15 days, custom product will according to special requirement |
| Samples | Yes |

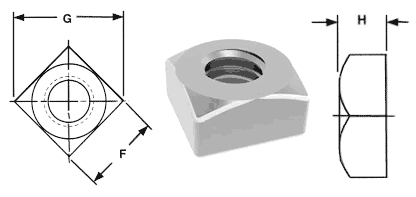

Dimensions Of Square Nuts
Square Nuts Dimensions Chart :
| Nominal or Basic Major Diameter of Thread | F | G | H | ||||||
| Widtd Across Flats | Widtd Across Corners | Lengtd | |||||||
| Basic | Max | Min | Max | Min | Basic | Max | Min | ||
| 1/4 | 0.2500 | 7/16 | 0.438 | 0.425 | 0.619 | 0.554 | 7/32 | 0.235 | 0.203 |
| 5/16 | 0.3125 | 9/16 | 0.562 | 0.547 | 0.795 | 0.721 | 17/64 | 0.283 | 0.249 |
| 3/8 | 0.3750 | 5/8 | 0.625 | 0.606 | 0.884 | 0.802 | 21/64 | 0.346 | 0.310 |
| 7/16 | 0.4375 | 3/4 | 0.750 | 0.728 | 1.061 | 0.970 | 3/8 | 0.394 | 0.356 |
| 1/2 | 0.5000 | 13/16 | 0.812 | 0.788 | 1.149 | 1.052 | 7/16 | 0.458 | 0.418 |
| 5/8 | 0.6250 | 1" | 1.000 | 0.969 | 1.414 | 1.300 | 35/64 | 0.569 | 0.525 |
| 3/4 | 0.7500 | 1-1/8 | 1.125 | 1.088 | 1.591 | 1.464 | 21/32 | 0.680 | 0.632 |
| 7/8 | 0.8750 | 1-5/16 | 1.312 | 1.269 | 1.856 | 1.712 | 49/64 | 0.792 | 0.740 |
| 1" | 1.0000 | 1-1/2 | 1.500 | 1.450 | 2.121 | 1.961 | 7/8 | 0.903 | 0.847 |
| 1-1/4 | 1.2500 | 1-7/8 | 1.875 | 1.812 | 2.652 | 2.458 | 1-3/32 | 1.126 | 1.062 |
| 1-1/2 | 1.5000 | 2-1/4 | 2.250 | 2.175 | 3.182 | 2.956 | 1-5/16 | 1.348 | 1. |
Application of Square Nuts
Previous
Next
Testing of Square Nuts
Previous
Next
Packing of Square Nuts
Previous
Next
Destination Of Square Nuts
