Rivet Nuts
Products Of Nut
Duplex UNS S32205 Aircraft Rivet Nuts, Stainless Steel 347 Metric Rivet Nuts, Duplex UNS S31803 Rivet Nuts, Stainless Steel 904L Ptfe Coated Rivet Nuts, Stainless Steel 310 Aircraft Rivet Nuts, SMO 254 Zinc Plated Rivet Nuts, super Duplex 32760 Round Rivet Nuts, Hastelloy C276 Hot Dip Galvanized Rivet Nuts, Stainless Steel 317 Round Rivet Nuts, super Duplex 32750 M12 Size Rivet Nuts, Stainless Steel 321 Hot Dip Galvanized Rivet Nuts, Stainless Steel 304 Rivet Nuts, Stainless Steel 316 M12 Size Rivet Nuts.
Attaching fragile surfaces to other parts is a breeze using stainless steel rivet nuts. Shree Ashapura Steel is a top provider of threaded rivet nuts of all sizes, styles, and materials. Rivet nuts made of 316 stainless steel are popular in industrial settings because of their durability, cost efficiency, and corrosion resistance.
Previous
Next
About Rivet Nuts
Sizes range from m3 to m12, and some, like the m6 blind rivet nut, have no visible threads. A tapped hole in the delicate surface is used to enter the bolt’s blind end, and then the bolt is threaded into the nuts. The threaded rivets made from Stainless Steel 304 allow the bolts to be tightened within the nuts with maximum torque without harming the primary material surface. Whether you’re joining aluminium panels, plastics, pipes, or any other components, the SS 316 rivet nut insert will do the job. The hex rivet nut, made of stainless steel type 316, may be tightened with a hex key. We have a wide variety of rivet nuts in stock, and as a top manufacturer and supplier, we can fulfil any requests you may have. You may get several kinds of rivet nuts from us, including countersunk rivet nuts and others.
Specification Of Rivet Nuts
| Size | M3 - M48 and also available in all customized sizes. |
| Length | 6mm-500mm and also available in all customized sizes. |
| Standard | DIN934 DIN936 DIN439 DIN555 A194 2H ASTM A563 |
| Material | Stainless Steel, Low carbon steel, Alloy carbon steel, High Tensile, Nickel Alloy, Alloy Steel, Mild Steel, Copper, Brass, Aluminium |
| Thread Requirements | Metric, Metric Fine, BSW, UNF, UNC, BA, BSF and BSCY (cycle) threads or as required |
| Manufacturing Process | Wire Drawing, Cold Heading, Insert tapping, Heat Treatment, Surface Plating, Inspection, Packing |
| Tollerence | OEM, ODM, ±0.03MM tolerance |
| Application | Wind tower, Nuclear power, Railway, Automotive industry, Construction, Electronic industry |
| Surface Finish | Blackening, Cadmium zinc plated, Galvanized, Hot dip Galvanized, Nickel Plated, Buffing, etc. |
| MOQ | 10 pieces |
| Delivery time | Regular product is about 7-15 days, custom product will according to special requirement |
| Samples | Yes |
Dimensions Of Rivet Nuts

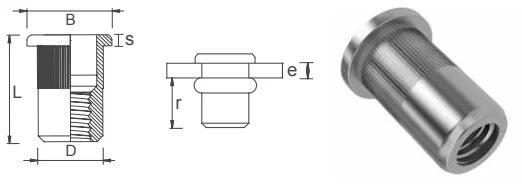

Rivet Nuts Dimensions Chart :
| Thread | Hole size +0.1/-0.0mm | Body diameter (D) +0.07/-0.1mm | Head dia meter (mm) (B) | Overall length(mm) (L) | Head thickness (mm) (s) | Grip range (mm) € | (r) Dimensions (mm) |
| M3 | 5.0 | 4.9 | 8.0 | 10.0 | 0.8 | 0.5 - 1.5 | 6.0 |
| M4 Short | 6.0 | 5.9 | 9.0 | 10.5 | 0.8 | 0.5 - 2 | 6.0 |
| M4 Medium | 6.0 | 5.9 | 9.0 | 12.0 | 1.0 | 2.0 - 3.5 | 6.0 |
| M5 Short | 7.0 | 6.9 | 10.0 | 13.0 | 1.0 | 0.5 - 2.5 | 7.5 |
| M5 Medium | 7.0 | 6.9 | 10.0 | 16.5 | 1.3 | 2.5 - 5 | 8.5 |
| M6 Short | 9.0 | 8.9 | 12.3 | 15.5 | 1.3 | 0.5 - 3 | 9.2 |
| M6 Medium | 9.0 | 8.9 | 12.3 | 19.5 | 1.3 | 3 - 5.5 | 10.5 |
| M8 Short | 11.0 | 10.9 | 14.5 | 18.5 | 1.5 | 1 - 3.5 | 11.5 |
| M8 Medium | 11.0 | 10.9 | 14.5 | 21.0 | 1.5 | 3.5 - 6 | 11.5 |
| M10 Short | 12.0 | 11.9 | 16.0 | 19.0 | 1.6 | 1.0 - 3.5 | 11.0 |
| M10 Medium | 12.0 | 11.9 | 15.8 | 22.3 | 2.0 | 03-Jun | 14.0 |
| M10 Short alt | 13.0 | 12.9 | 17.0 | 21.5 | 1.7 | 1.0 - 4 | 11.0 |
| M12 | 16.0 | 15.9 | 22.0 | 25.0 | 2.0 | 1.0 - 3.5 | 15.0 |
